Metal Shutter: Shutters, Galvalume, Stainless Steel, Aluminum(anodized)
Transparent: POLYCARBONATE
Grille-Type: White Aluminum Anodized or Brown Analok

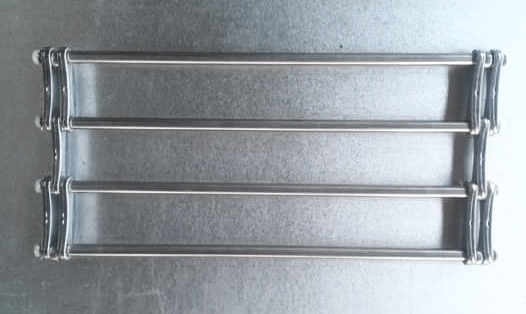

Grilles

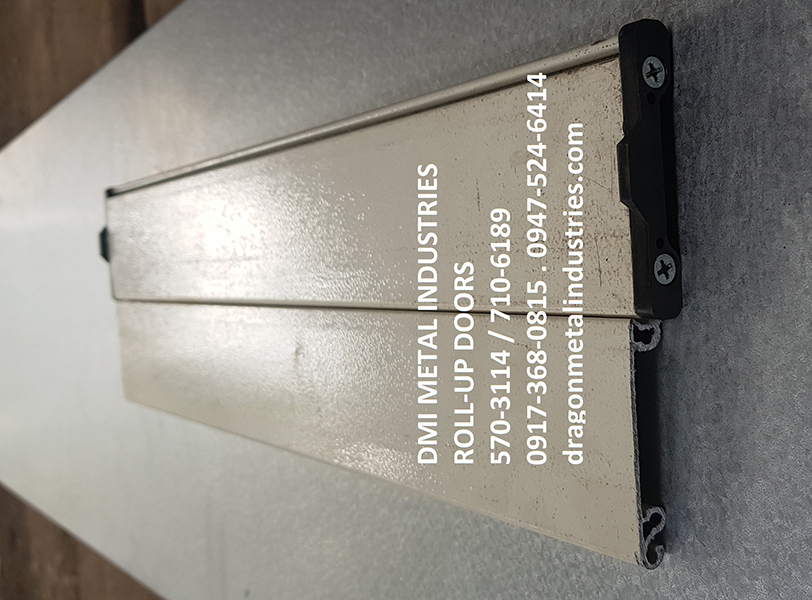

Aluminum
Oven Baked Slats

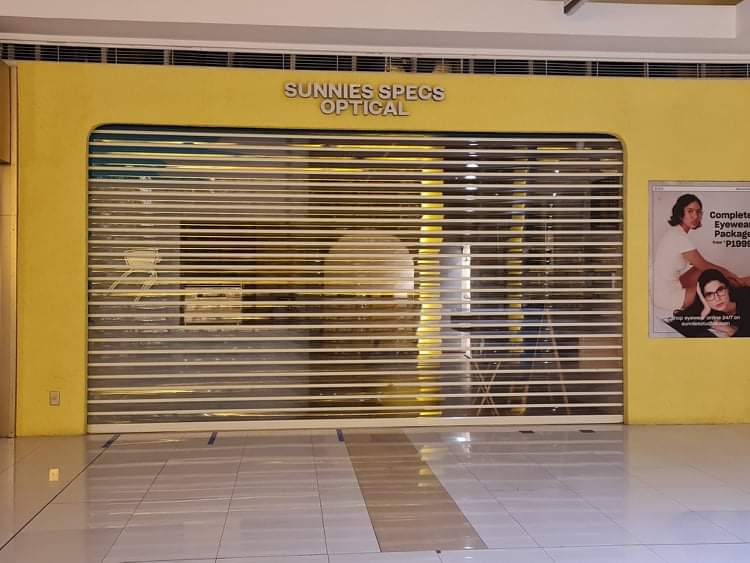

Polycarbonate

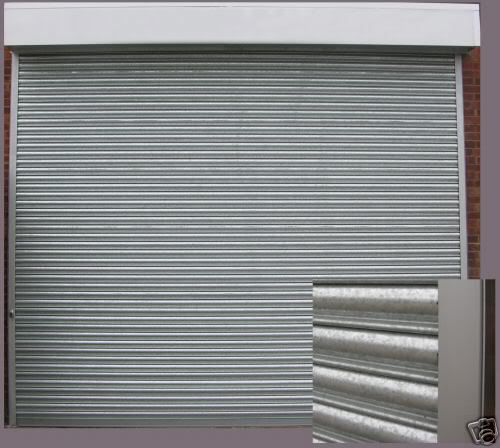

Galvalume

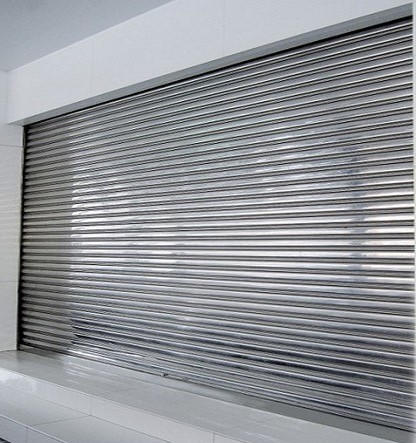

StainlessGauge # sub 24 is best used with manual operation by host residential and small or medium commercial building requirements.
Gauges #18 or #20 are best and suited for chained, motorized, and remote controlled operation by most industrial building requirements
Manually operated shutter with wide openings can be divided into several panels as per required and detachable mid post are placed to assure durability and security
Usually installed within the roll-up door panel which serves as service or "wicket" door for people on the go, without jeopardizing its original function.
To lessen wind resistance for longer life span of shutters and to see outside premises, ventilation holes in specific slats can be provided.
LOCKSET: A lockset is installed in slats at the middle of every panel used for locking the shutter
PADLOCK HOLDER: This locking mechanism is installed at the bottom-most part of the shutter that will be attached to its side guides by a padlock to complete this locking system.
Wicket
Ventilation
LockSet
Raised of lowered by hand or pole. Built springs will lessen such effort. A removable mid post is placed for widths exceeding 3.00 meters.
Raised of lowered by heavy duty, all steel design flame cut steel gears and galvanized hand chain
Raised of lowered by heavy duty sprocket-and-wheel gear box motor unit complete with emergency hand chain drive. Single phase motor standard. Other available upon request. Motor 1/4, 1/3, 1/2, 3/4, 1HP
Same parts as motor but with additional feature of wireless control at a distance of 20-30 meteres
